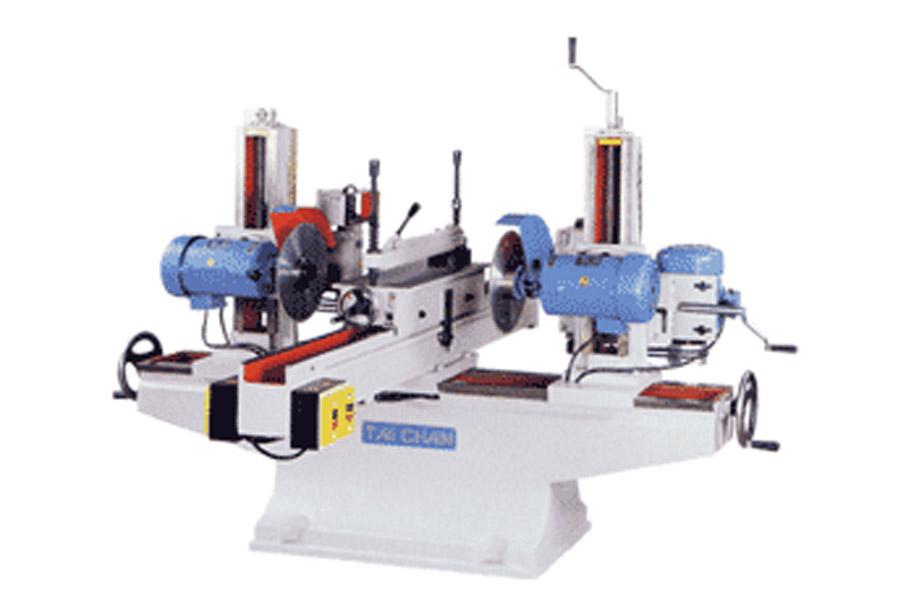

Model

 TDS-4S

 Carriage

 Single Rail

 Max. cutting length

 48"

 Min. cutting length

 12"

 Cutting width

 24"

 Max. clamping thickness

 4-1/2"

 Saw blade diameter

 8" / 10" / 12"(optinal)

 Saw arbor

 ø1"

 Saw blade speed

 3400 / 4200 / 5800 R.P.M.

 Saw blade swivel

 360 °

 Spindle diameter

 ø1"

 Spindle Speed

 3000 / 4200 / 5800 R.P.M.

 Spindle swivel

 360 °

 Saw longitudinal travel

 12"

 Saw vertical travel

 17"

 Carriage cross travel

 24"

 Saw head drive motor

 2HPx2

 Moulder spindle motor

 3HPx2

 N.W. / G.W.

 760 / 850 kgs

 Machine dimensions

 88 "× 68" × 55"

 Packing dimensions

 88 "× 32" × 59"
