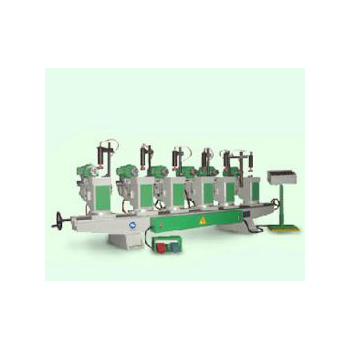

Model

 SD-6T

 Spindle motor

 2 HPx6

 Spindle speed

 50HZ-3000R.P.M. 60HZ-3500R.P.M.

 Head in line max. distance between drills

 3000 mm

 Head in line min. distance between drills

 280 mm

 Head at parallel max. distance between drills

 2500 mm

 Head at parallel min. distance between drills

 300 mm

 Max. boring depth

 80 mm

 Stroke travel

 100 mm

 Clamp cylinder

 6

 Max. spindle to table distance

 60 mm

 Air Pressure

 5.5 kg/c㎡

 Machine size

 3500 mm x 1000 mm x 960 mm

 Packing size

 3300 mm x 1240 mm x 1480 mm

 Net weight

 1200 kg

 Gross weight

 1480 kg
